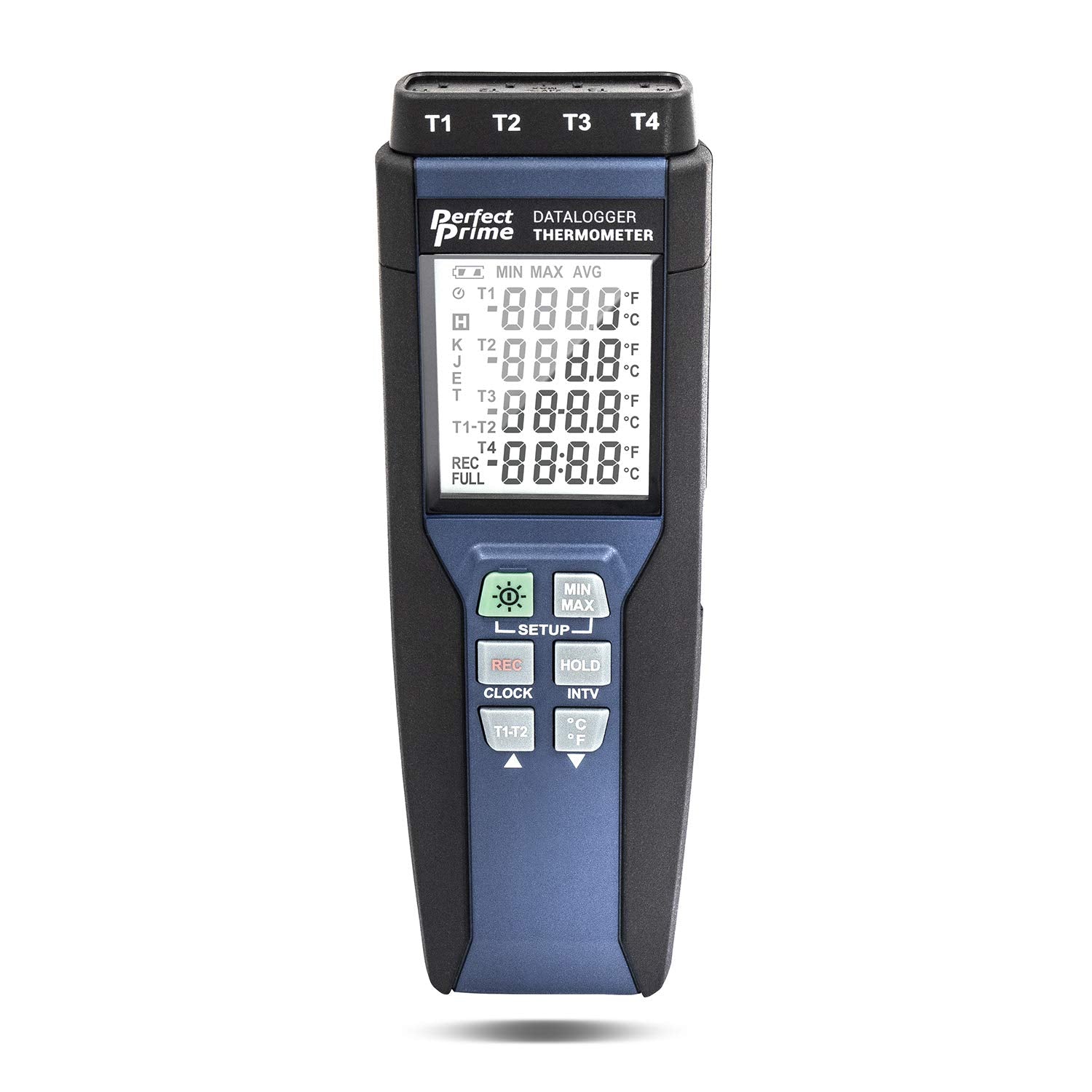

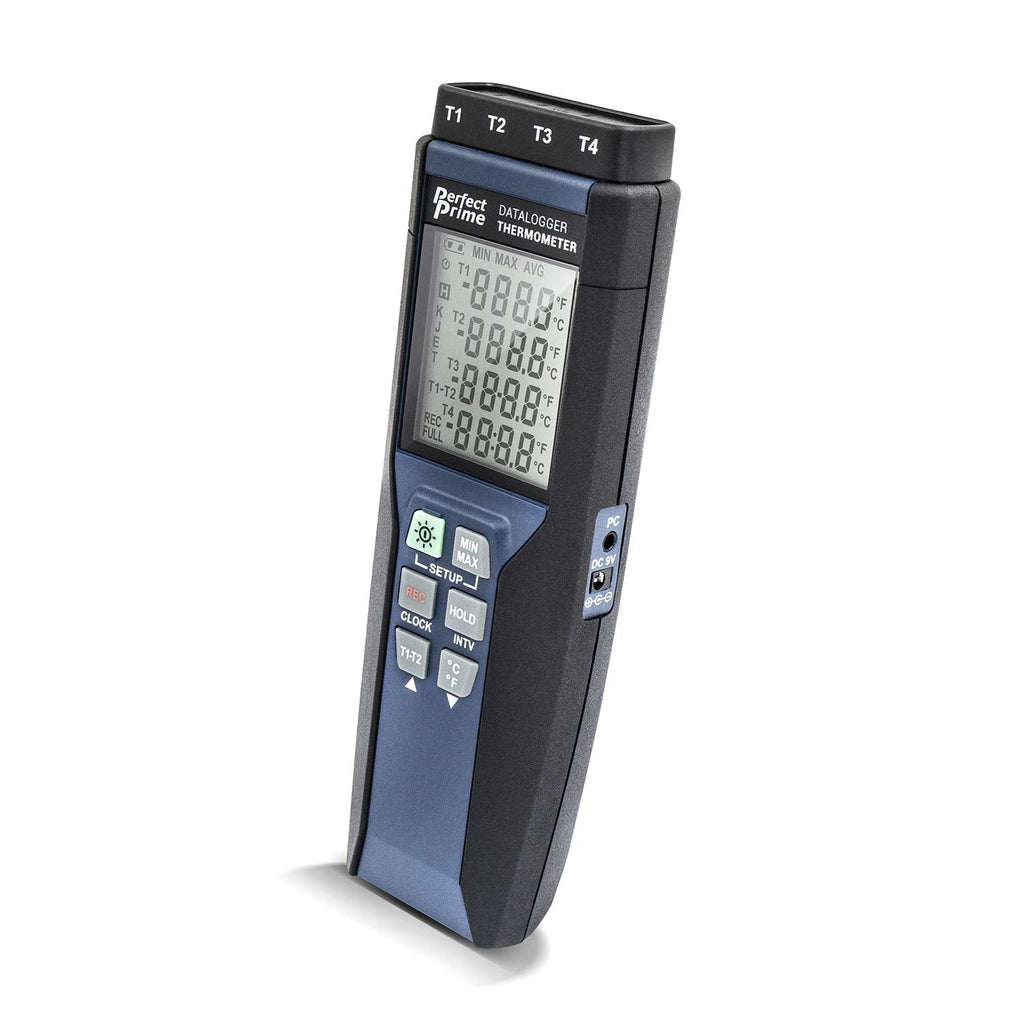

PerfectPrime TC0378, 4-Channels Thermocouple Thermometer K,J,E,T DataLogger, Isolated input protection 250VAC

PerfectPrime TC0378, 4-Channels Thermocouple Thermometer K,J,E,T DataLogger, Isolated input protection 250VAC

$445.49

Tracked Shipping on All Orders

14-Day Returns

Secure Payments

24/7 Customer Support

Description

Brand: PerfectPrime

Features:

  • Four Channels Thermocouple Thermometer support K , J , E, T Type , 2.6" LCD display
  • Internal DataLog Storage: 16,000 data logger records each channel
  • USB PC Interface with cable: Real Time Monitor, Graphic, Datalog , Storage , data import / export
  • Isolated Input Protection up to 250 VAC between any two inputs
  • Certificate of Calibration : National Measurement Laboratory R.O.C (NML/ROC) . Meter Made in Taiwan

Part Number: TC0378

Details: Product Specifications - Measurement Temperature range : K: -200Β°C ~1372Β°C (- 328Β°F ~ 2501Β°F) J: -200Β°C~1000Β°C (- 328Β°F ~ 1832Β°F) E: -200Β°C~750Β°C (- 328Β°F ~ 1382Β°F) T: -200Β°C~400Β°C (-328 Β°F ~ 752Β°F) - (May require appropriate Thermocouple probes) Accuracy : Accuracy is specified for ambient temperatures between 18Β°C (64Β°F) and 28Β°C (82Β°F). The specifications do not include thermocouple sensor error. Β±(0.1% of reading+0.7Β°C) Β±(0.1% of reading+1.4Β°F) below -100Β°C(-148Β°FοΌ‰ Β±(0.4% of reading +0.7Β°C) Β±(0.4% of reading +1.4Β°F) Temperature resolution : 0.1Β°C <600Β°C / 0.1Β°F <1000Β°F, 1Β°C ≧ 600Β°C / 1Β°F ≧1000Β°F Temperature coefficient: 0.01% of reading + 0.05Β°C per Β°C (<18Β°C or >28Β°C) Sample rate: 1 time per second Battery type: 9V battery x 1 Battery lifetime: Approx. 30 hours (alkaline battery) Operation temperature: 0Β°C to 50Β°C (32Β°F to 122Β°F) Operation humidity: 10 to 90%RH (no condensing) Storage temperature: -20Β°C to 60Β°C (-4Β°F to 140Β°F) Storage humidity: 10 to 75%RH Dimensions/ Weight: 197mm(L) Γ— 65mm(W) Γ— 36mm(H)/ Approx. 310g Standard Accessories: Instruction manual, Carrying case, battery 9V AAA x 1 pcs, Windows software (download from us), USB cable, K type bead probe x 2 pcs, Support: Windows XP/ VISTA/ Windows 7/ Windows 8/ Windows 10

EAN: 5060529682878

Package Dimensions: 7.8 x 7.0 x 2.0 inches
