Brand: SAMYO

Color: Vc60b+ With Test Lead

Features:

• Accurate and reliable, wide test range
• Large backlit LCD display, easy to read. Unit symbol display, easy to use
• Strong anti-magnetic and anti-jamming function
• Full function protection, anti high voltage circuit design
• High voltage and short circuit input alarm

Part Number: SY-VC60B+

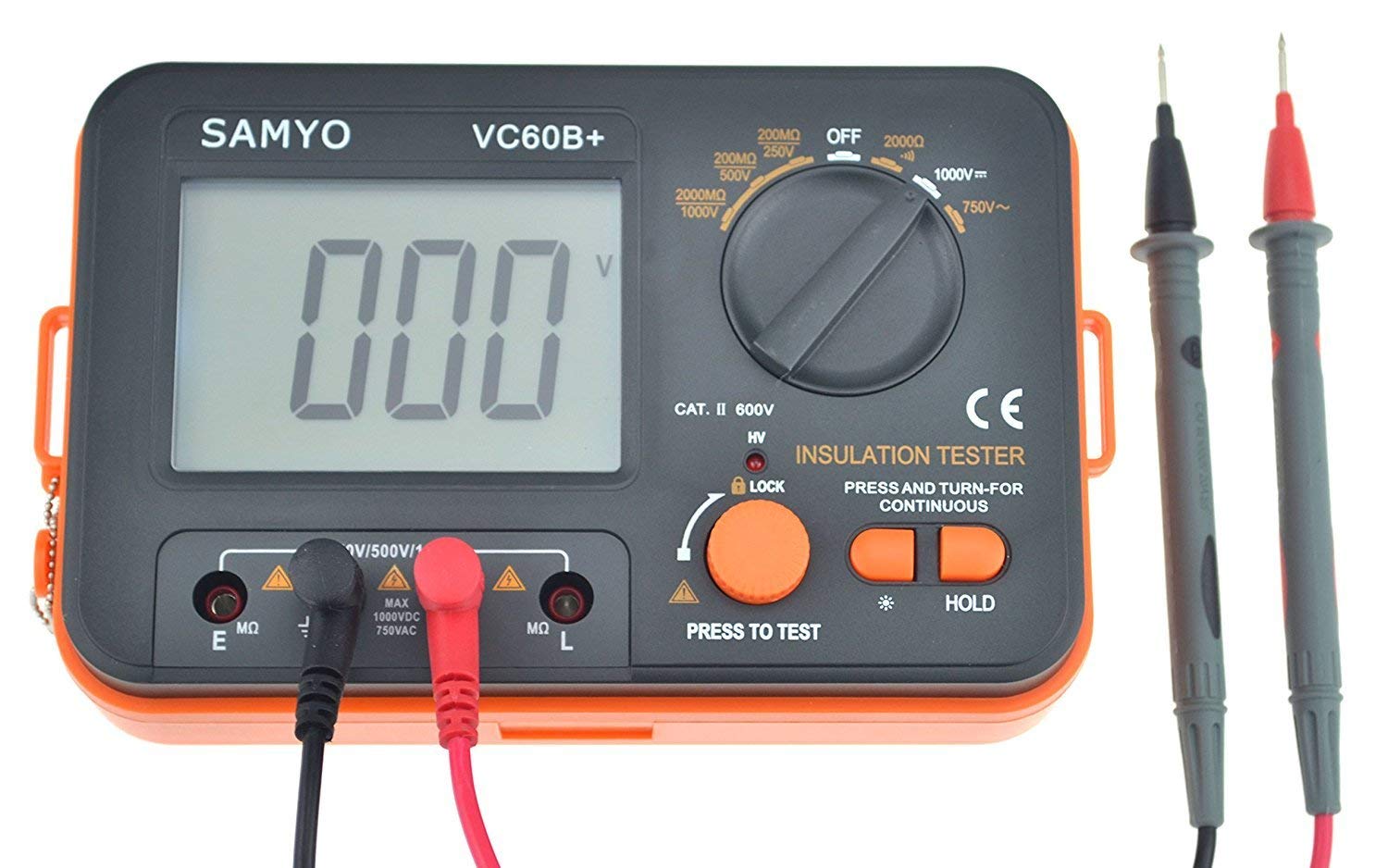

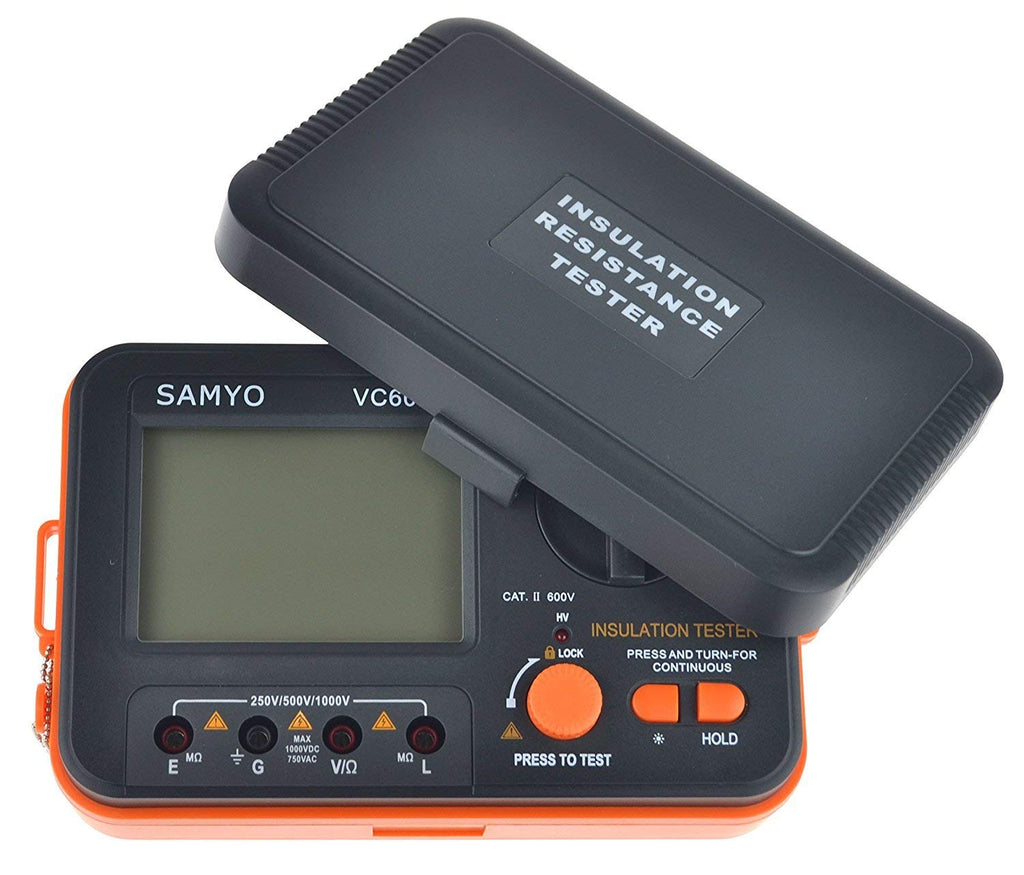

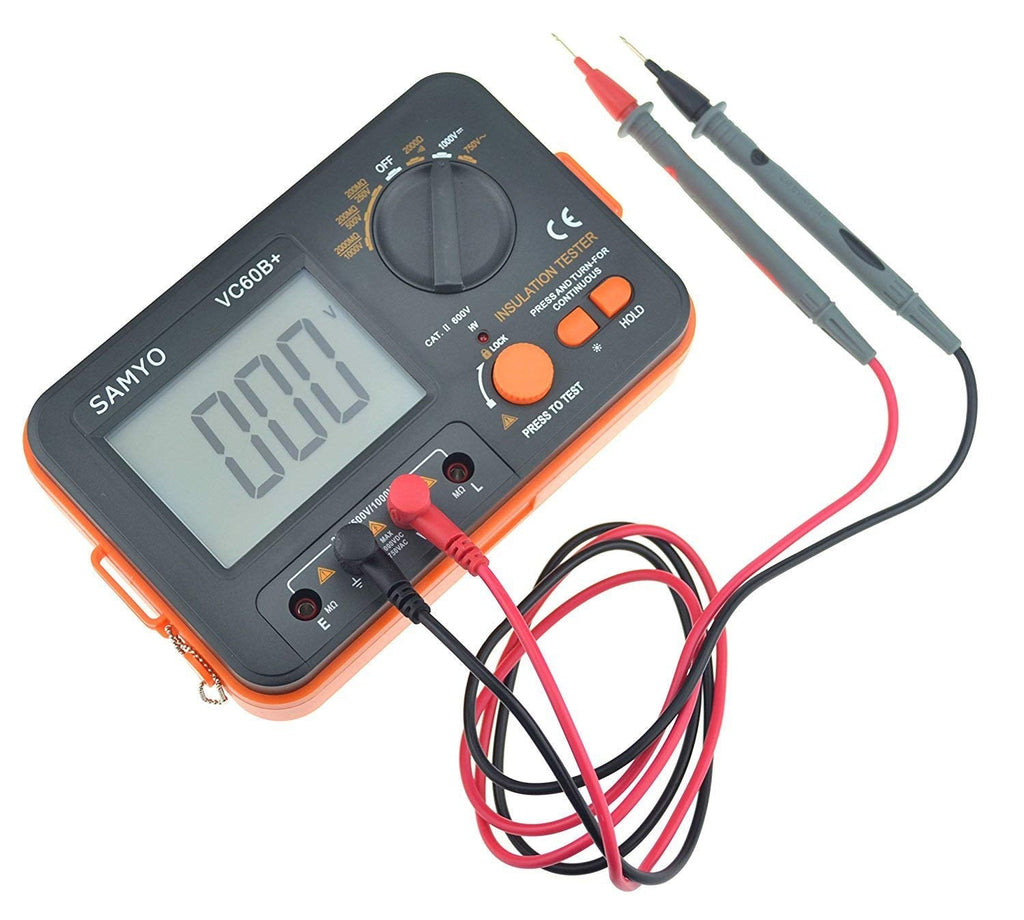

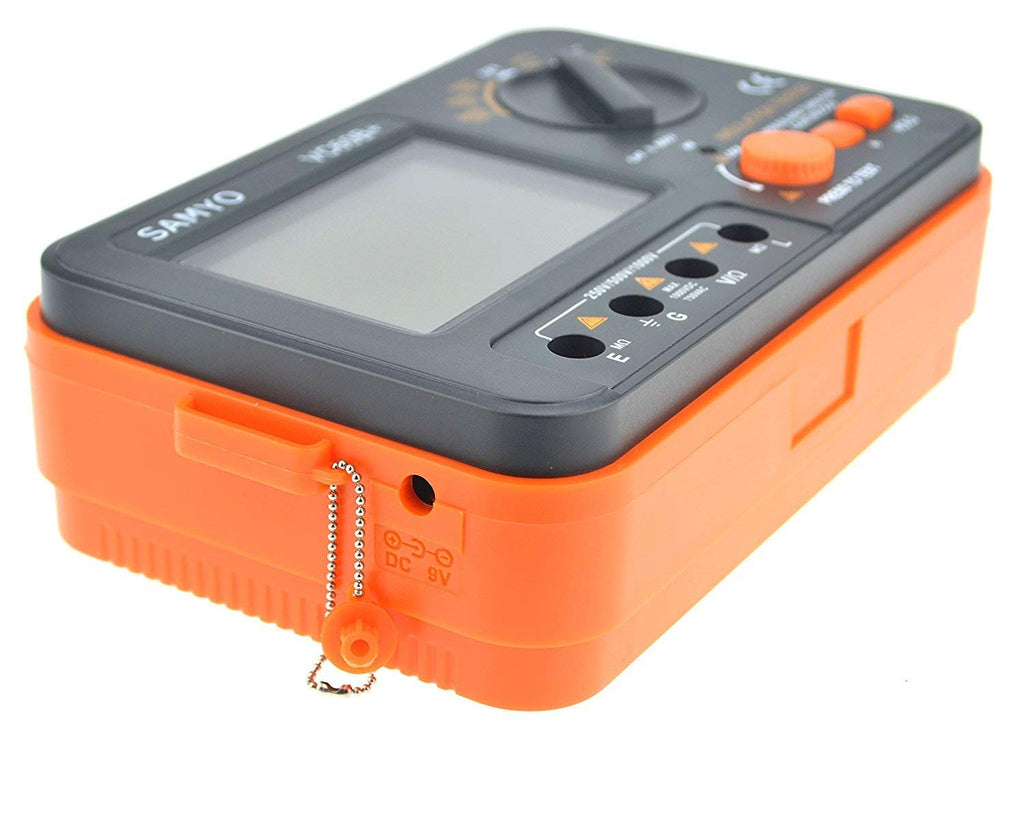

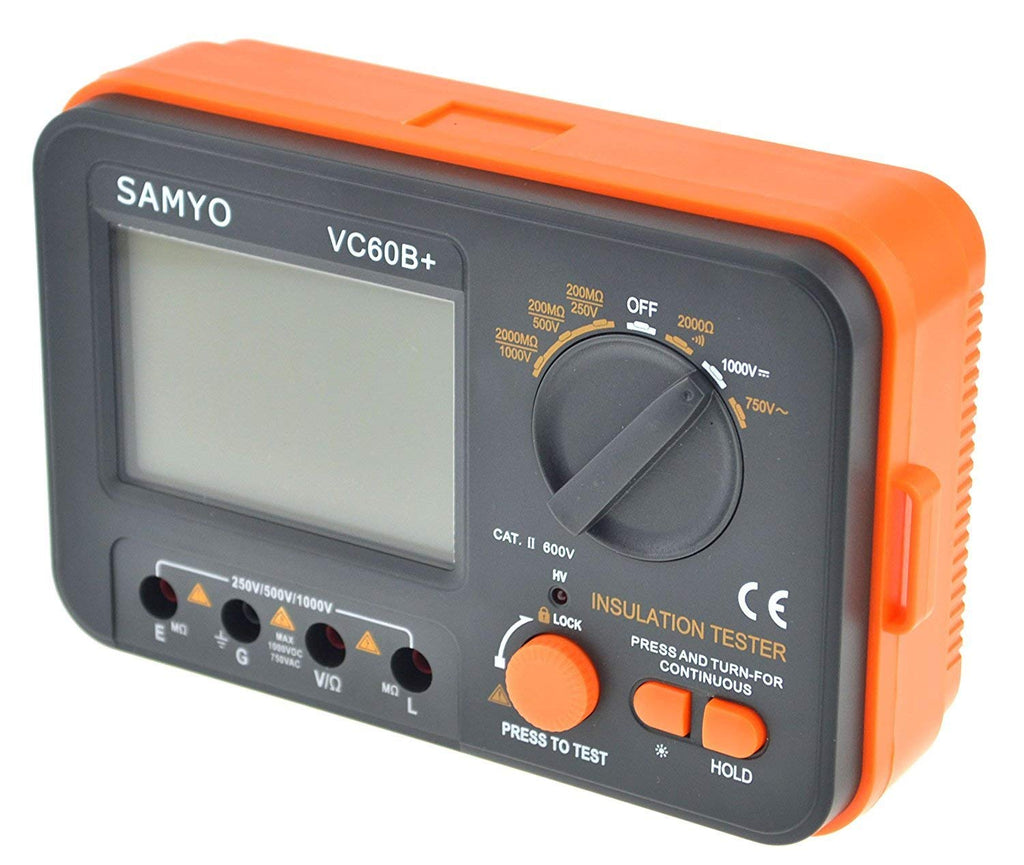

Details: This digital insulation tester is an ideal instrument that can be used in testing insulation of electric machines, cables, electronic equipments, electric facilities, etc. Its main features include: easy to operate, wide test range, highly stable performance, backlit LCD display, data hold and auto power off. Using a shoulder strap, it can be used by both hands.
Insulation resistance text range:
0~200MΩ (250V±10% test voltage, Resolution: 100kΩ, Basic accuracy: ±(4.0%+2))
0~200MΩ (500V±10% test voltage, Resolution: 100kΩ, Basic accuracy: ±(4.0%+2))
0~2GΩ (1000V±10% test voltage, Resolution: 1MΩ, Basic accuracy: ±(4.0%+2))
Resistance text range: 0~2kΩ (Basic accuracy: ±(1.0%+5), Resolution: 1Ω)
DCV text range: 0~1000V (Basic accuracy: ±(1.0%+5), Resolution: 1V)
ACV text range: 0~750V (Basic accuracy: ±(1.5%+5), Resolution: 1V)
Special function:
Continuity alarm: Less than 50Ω±10Ω
Data hold: Yes
LCD backlight: Approx 10Sec.
Function protection: Yes
Low Battery Indication: Yes
Input impedance: 10MΩ
Sampling rate: 3 times/Sec.
AC frequency response: 40-400Hz
Operation mode: Manual range
Max.display: 1999
LCD size: 75 x 52mm
Operating Temperature: -15℃~55℃
Relative Humidity: Less than 75%RH
Power source: 9V, 6 x 1.5V AA battery(Included)

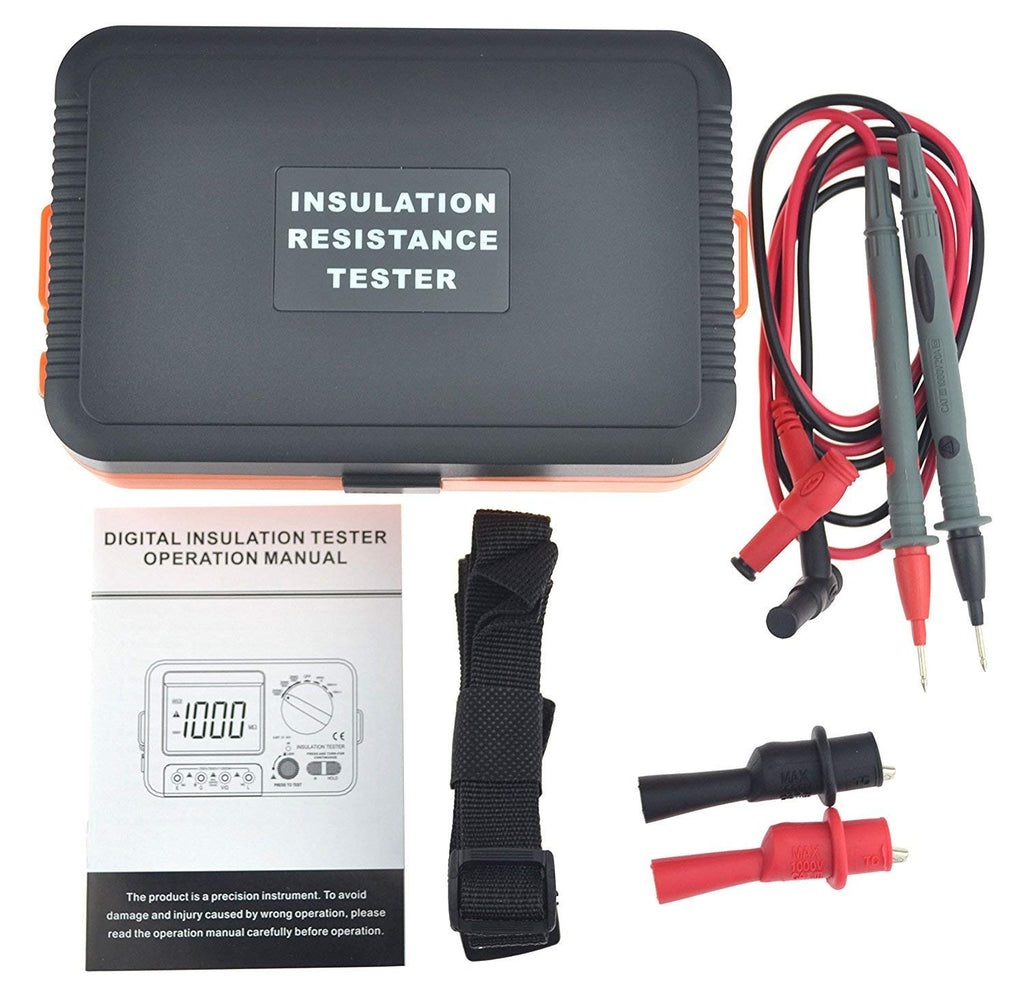

Package Content:
1 x Digital Insulation Tester

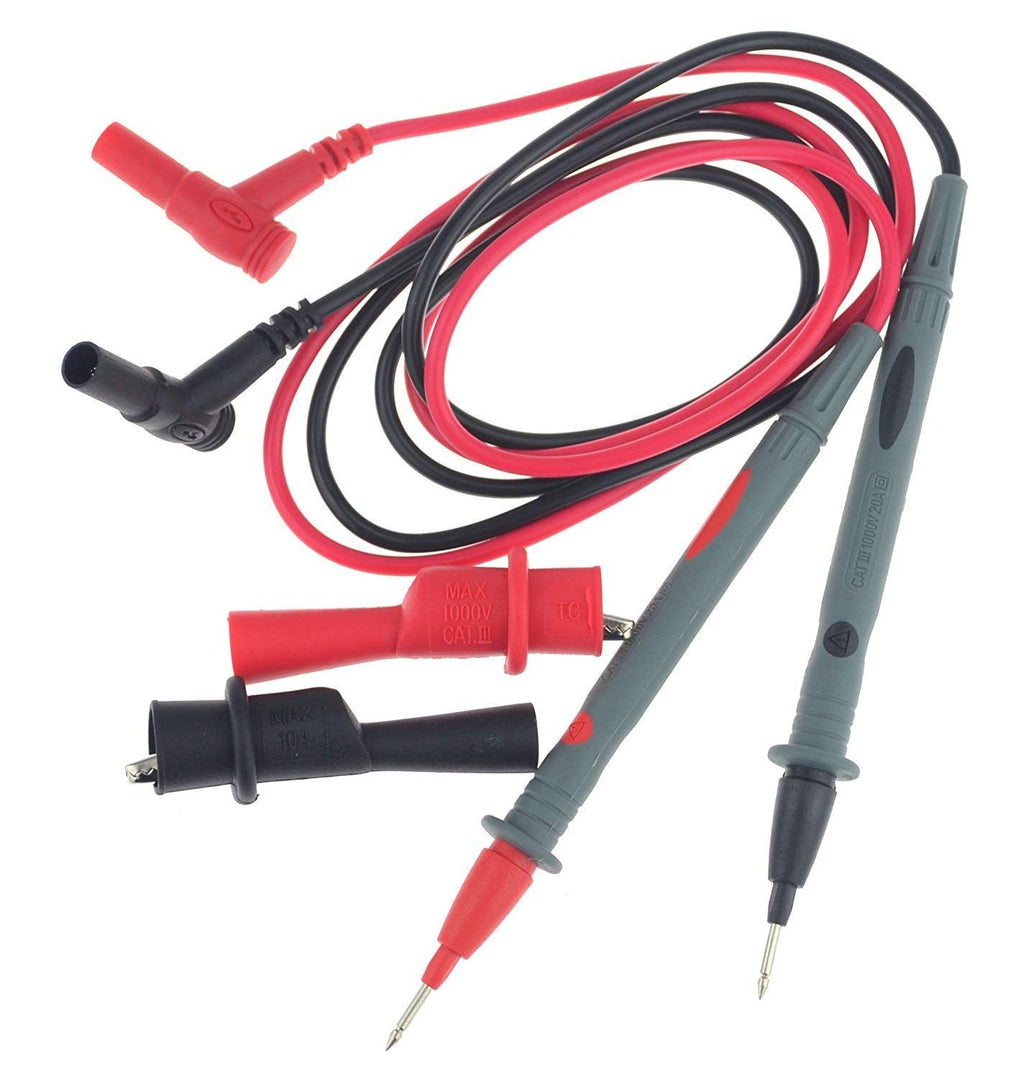

2 x Test lead
2 x Test Alligator clips
1 x Shoulder strap

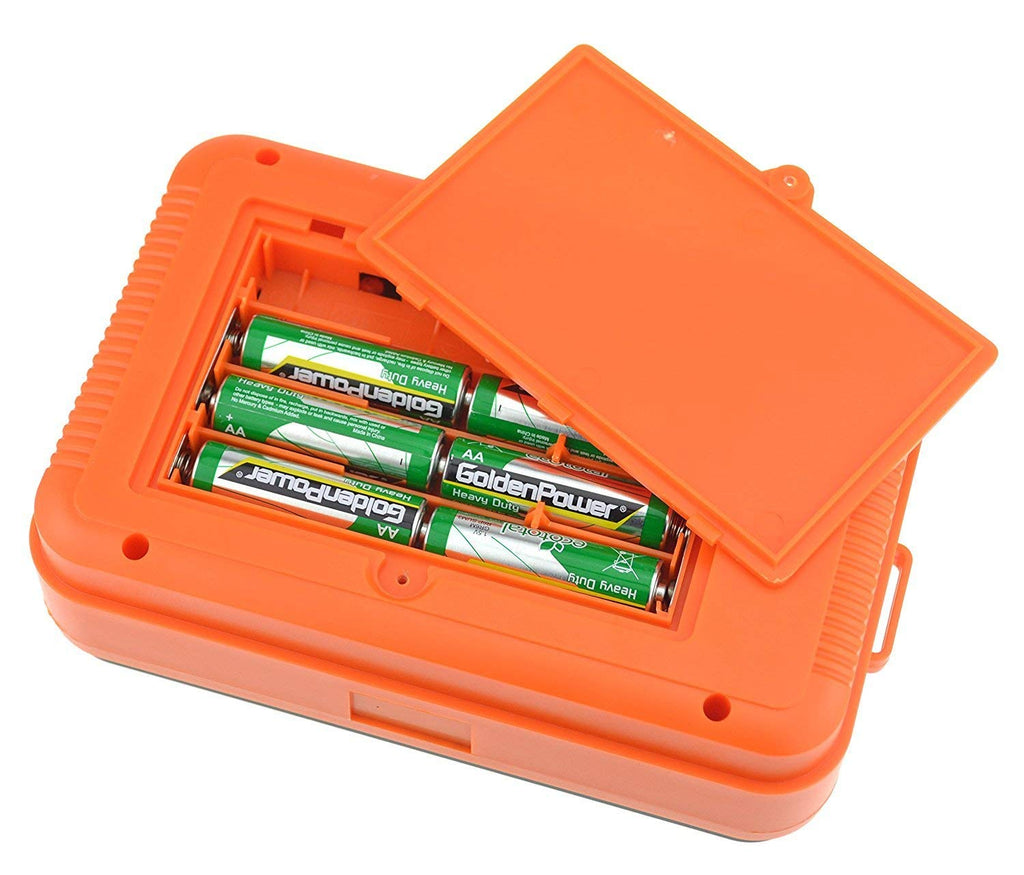

6 x 1.5v batteries (Note:Sometimes we put the batteries in the battery compartment directly, please reposition the batteries correctly before you use.)
1 x User Manual

EAN: 0757347899216

Package Dimensions: 8.0 x 7.0 x 2.8 inches
