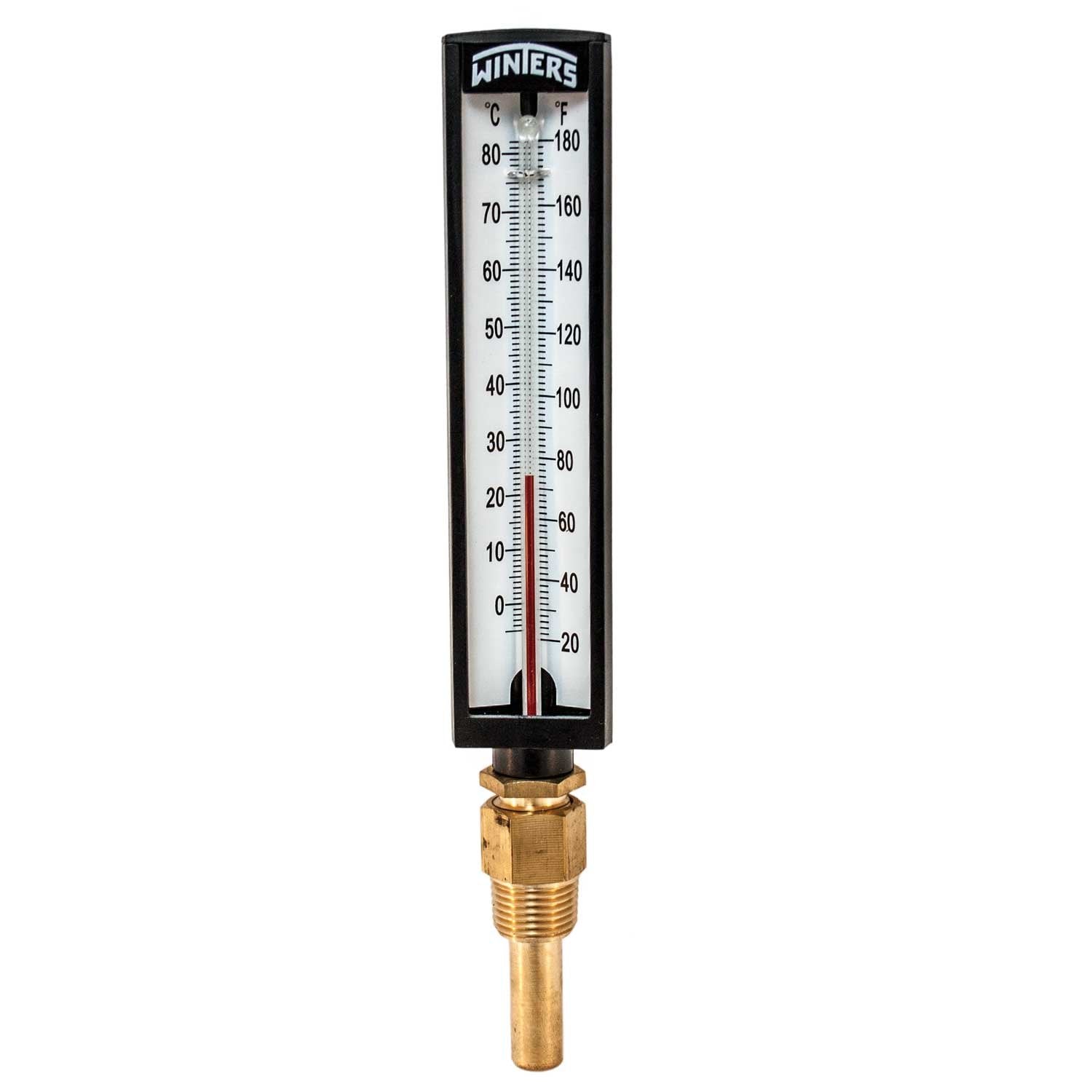

Winters TAS Series Brass Dual Scale Industrial 5AS Straight Thermometer with Thermowell, 20-180 F/C Range, +/-2 Percent Accuracy, 1/2'' NPT Bottom Mount
  • Winters TAS Series Brass Dual Scale Industrial 5AS Straight Thermometer with Thermowell, 20-180 F/C Range, +/-2 Percent Accuracy, 1/2'' NPT Bottom Mount
Winters TAS Series Brass Dual Scale Industrial 5AS Straight Thermometer with Thermowell, 20-180 F/C Range, +/-2 Percent Accuracy, 1/2'' NPT Bottom Mount

Winters TAS Series Brass Dual Scale Industrial 5AS Straight Thermometer with Thermowell, 20-180 F/C Range, +/-2 Percent Accuracy, 1/2'' NPT Bottom Mount

$82.49

Tracked Shipping on All Orders

14-Day Returns

Secure Payments

24/7 Customer Support

Description

Brand: Winters Instruments

Color: White

Features:

  • An all-purpose, economical thermometer with a vertical sensing tube and case
  • Separable thermowell
  • Impact resistant polypropylene case
  • Red liquid-in glass
  • 5 Year warranty

model number: TAS131

Part Number: TAS131

Details: An all-purpose, economical and case. Separable thermowell. Impact resistant polypropylene. Red liquid-in glass. Dual scale (degree F and degree C). Bottom connected. 1/2" NPT process connection. 5 year warranty. Applications: Hot water lines, boilers, heating, ventilation and air conditioning. Scale: aluminum, painted white with black markings. Case: 5" black polypropylene. Lens: glass. Tube: glass, cushioned. Sensing liquid: kerosene, tinted red. Stem: brass. Swivel nut: brass. Thermowell: brass 1/2" NPT standard. Operating pressure: maximum 710 psi (50 kg/square centimeters). Ambient temperature: -40 degree F to 122 degree F. Process temperature: -40 degree F to 400 degree F. Accuracy: +/-2 percent of full Scale. Enclosure rating: IP54.

EAN: 0628311003062

Package Dimensions: 10.4 x 2.3 x 1.1 inches
