Brand: Winters Instruments

Color: White

Features:

• Widely specified in the industrial and commercial plumbing trade
• Includes a separable thermowel
• 6" Stem
• +/-1 Percent accuracy
• 5 Years warranty

model number: TIM101-6A

Part Number: TIM101-6A

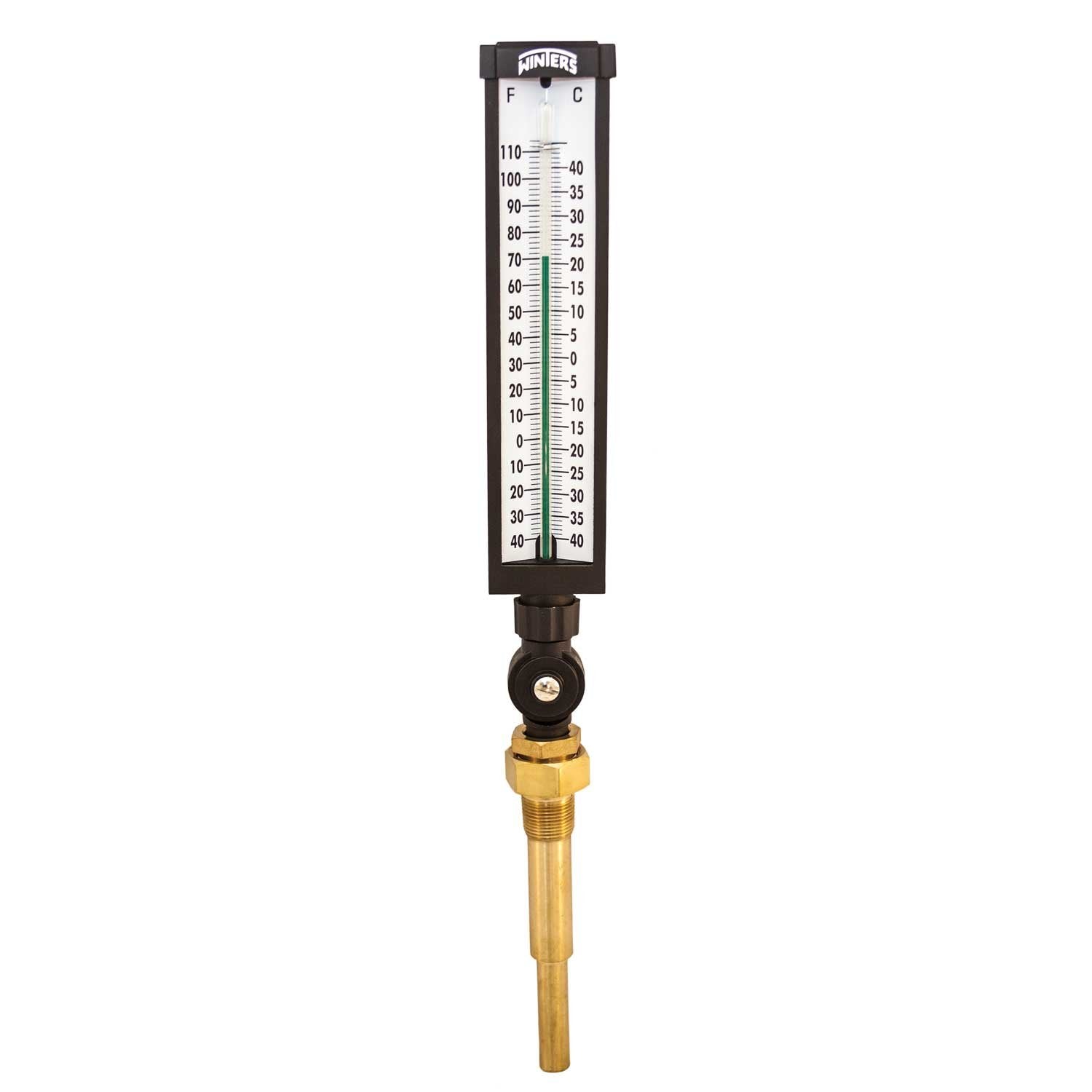

Details: Widely specified in the industrial and commercial plumbing trade. Includes a separable thermowell. 6" Stem. Organic filled tube (non-mercury). Dual scale (degree F and degree C). Vari-angle connection and 360 degree case rotation for easy installation. Graphite filled bulb chamber for maximum heat conduction. +/-1 Percent accuracy. 5 Years warranty. Application: new construction, plumbing, water lines, boilers, heating, ventilation and air conditioning. Case: 9" aluminum, impact resistant. Lens: glass. Connection: 3/4" NPT with thermowell. Scales: aluminum painted white with black markings. Bulb chamber: tapered cast aluminum with graphite fill. Sensing liquid: organic fluid. Adjustment: fully adjustable. Thermowell: 3/4" brass separable socket. Enclosure rating: IP54. Temperature range: -40 degree F to 110 degree F.

EAN: 0628311000689

Package Dimensions: 21.1 x 3.2 x 1.5 inches
